Binary Bicycles tig up aggressive geo Maniak Titanium Hardtail Prototype w/ monster clearance

9
0


Binary Bicycles have teamed up with Steve at Hardtail Get together to collaborate on an all-new Titanium Hardtail; the Binary Maniak. Hardtail Get together is a merchandise model and profitable YouTube Channel devoted to, you guessed it, hardtail lovin’. The Maniak is principally designed by Steve, encompassing all one of the best bits in regards to the hardtails he has examined over time, however executed by the titanium specialists at Binary Bicycles. Designed round a 120mm fork and 29″ x 3.0″ tire clearance, the Maniak is lengthy, low, slack and steep the place it counts. Let’s take a more in-depth have a look at what you’re getting for $2099 USD of your hard-earned money.

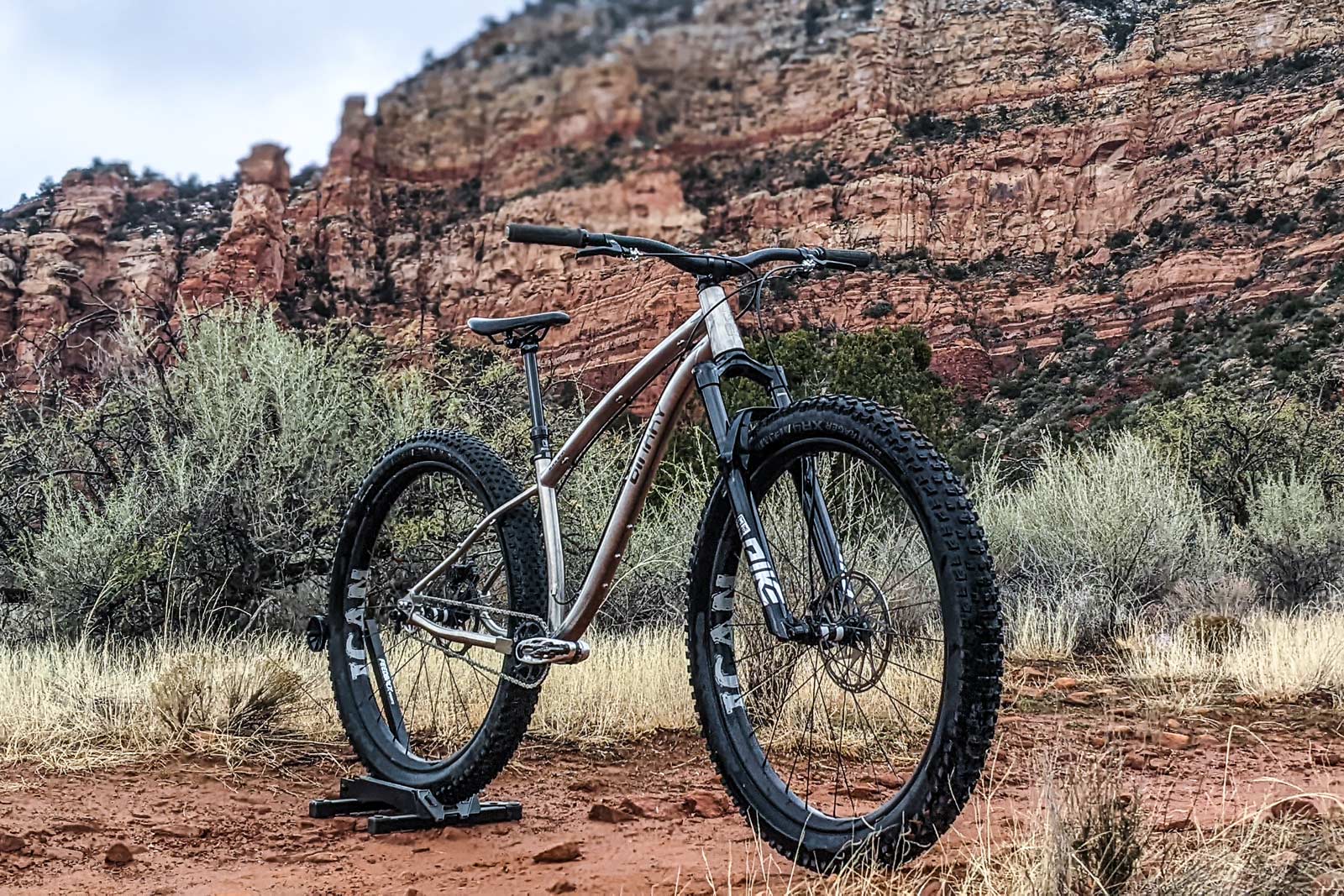

Binary Maniak Titanium Hardtail

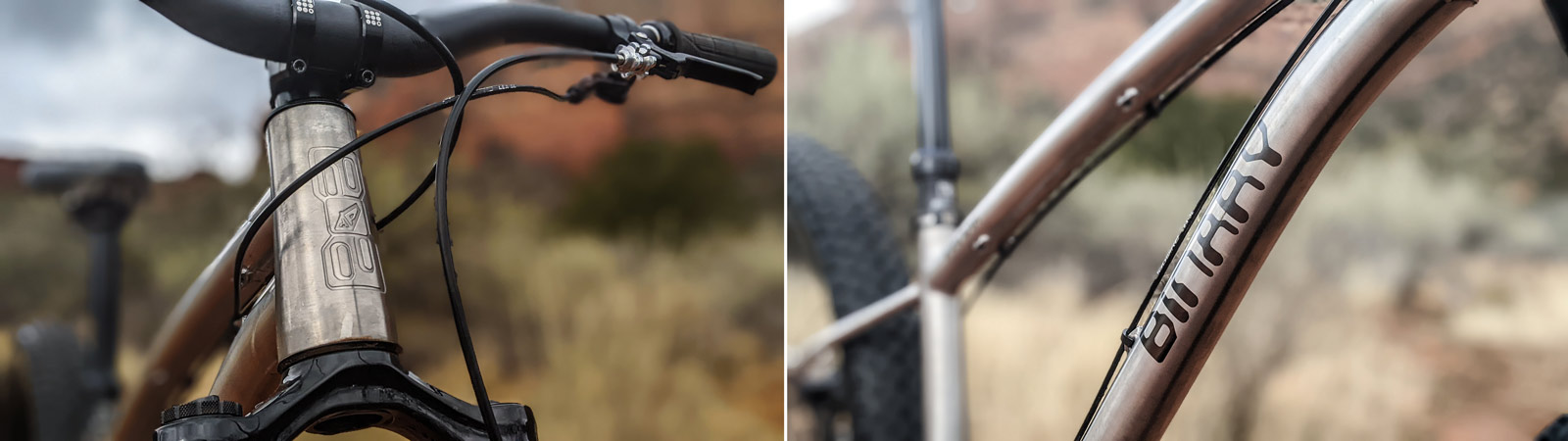

binary maniak sandblasted graphics

Steve at Hardtail Get together had needed to design his very personal hardtail for just a few years, however struggled to seek out the suitable model prepared handy him the reigns. That modified following some check rides of the Binary Bicycles providing. Steve appreciated their bikes for certain, however was sincere sufficient to confess they didn’t actually go well with the terrain he rides most frequently, nor did they go well with his using model. That was when Binary Bicycles stepped up and supplied to construct “The Dream Hardtail in response to Steve at Hardtail Get together”. Quick ahead just a few years and that hardtail is the Binary Maniak, and it’s obtainable to pre-order now.

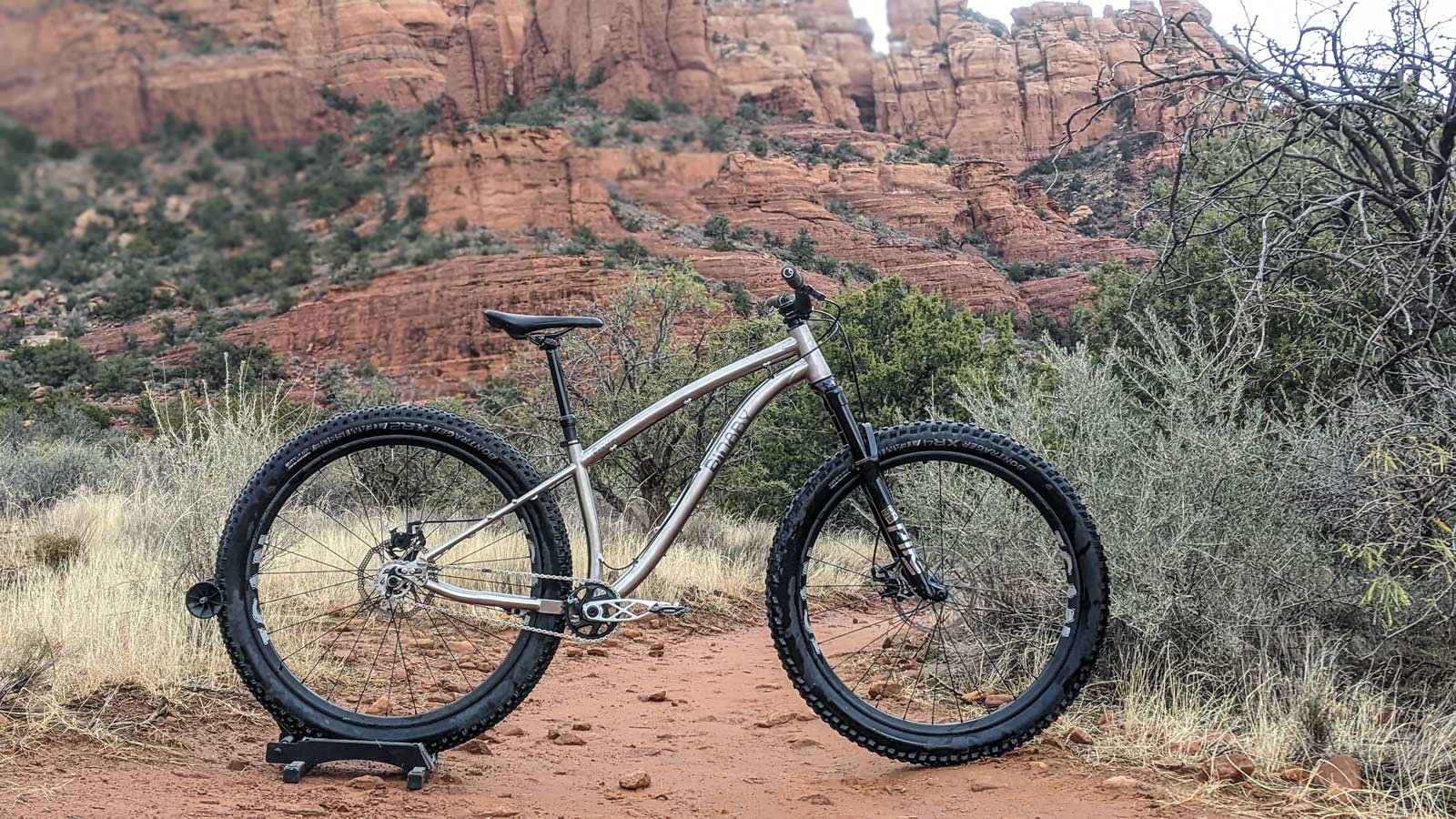

binary-maniak ti hardtail 120mm fork 29" x 3" tire clearance

The Binary Maniak runs Paragon model sliding dropouts, that means the bike will be setup as a single-speed rig (as proven) or geared. Stoked on these sick-looking machined cranks? Try our story on 5DEV right here to study extra.

The Maniak is a contemporary, aggressive short-travel hardtail, handcrafted utilizing seamless 3Al-2.5V (ASTM Grade 9) titanium alloy tubing. “I’ve at all times needed a contemporary hardtail that I may tackle any path and have enjoyable. So, that’s what Binary Bicycles has constructed for me. The Maniak is designed round my perception that aggressive hardtails carry out finest with a 120mm fork. Nevertheless, it can accommodate as much as a 150mm fork for many who want to experiment” – Steve at Hardtail Get together.

binary maniak frame details

The Maniak will get a hand-brushed end with sandblasted decals; runs exterior cable routing

So, who precisely is the Maniak designed for? Binary say:

  • Riders who’ve adopted a contemporary approach that fits slacker bikes with an extended attain
  • Riders who’ve steep terrain the place this bike can come alive
  • Bikepackers who need a bikepacking rig that’s slacker than most

On that final level, it’s vital to say that the Maniak body boasts 2 bosses on the seatpost, 3 bosses on the highest of the downtube, in addition to an additional 3 bosses on the underside of the downtube. Additionally notice the rack mounts on seatstays. Cupboard space is plentiful for the bikepacker in you. You can even swap out the cassette and rear mech for a single-speed setup, and the stack top is fairly tall making for an upright using place that ought to be pretty comfy on an extended journey.

binary maniak ti hardtail mtb versatile singlespeed geared mullet 29er 3 inch tire clearance

The Binary Maniak is fabricated in China, although the model have began constructing some prototype metal frames out of their HQ in Arizona

The body runs enhance rear axle spacing, with huge stays capable of accommodate 3.0″ huge tires; cautious contouring of the chainstays prevents heel rub. Whether or not you select to run a 27.5″ rear wheel for a mullet setup, or a 29″ rear wheel, a 3.0″ tire is the utmost. That mentioned, there’s nothing stopping you operating some tremendous racy XC tires for quicker rides when rolling resistance is extra vital than grip or outright consolation.

Onto the precise numbers… constructed up with that really helpful 120mm fork (531mm A2C) and a 29″ wheelset, the Binary Maniak runs a 65° head tube angle paired with a 77/76° seat tube angle, body size-dependent. Throughout the S-XXL body measurement vary, chainstay size varies, growing in step with the rising attain numbers. This proportional strategy to border design is to be anticipated actually, particularly when you think about that this body will depart you $2099 USD out of pocket. Mentioned stays are fairly brief, too, beginning at 415mm on the S and M frames, growing to a most of 440mm on the XXL.

Alternatively attain figures are fairly beneficiant, as you would possibly count on from an “aggressive geometry” hardtail; 435mm in Small, growing to 480mm in Massive, and maxing out at 520mm on the XXL. The BB drop is available in at 65mm on S-M/L, however is barely greater on the bigger body sizes at a drop of 60mm. Quick seat tubes (420mm in giant) will permit riders to reap the benefits of the extremely lengthy journey dropper seatposts now in the marketplace.

binary maniak geometry

Pricing & Availability

The Binary Maniak titanium hardtail body will set you again $2099 USD. Binary Bicycles at the moment are accepting pre-orders for the primary batch; open until Feb 11, 2022. A $600 USD deposit will safe you one.

Hardtail Get together’s First Trip on the Binary Maniak

BinaryBicycles.com
